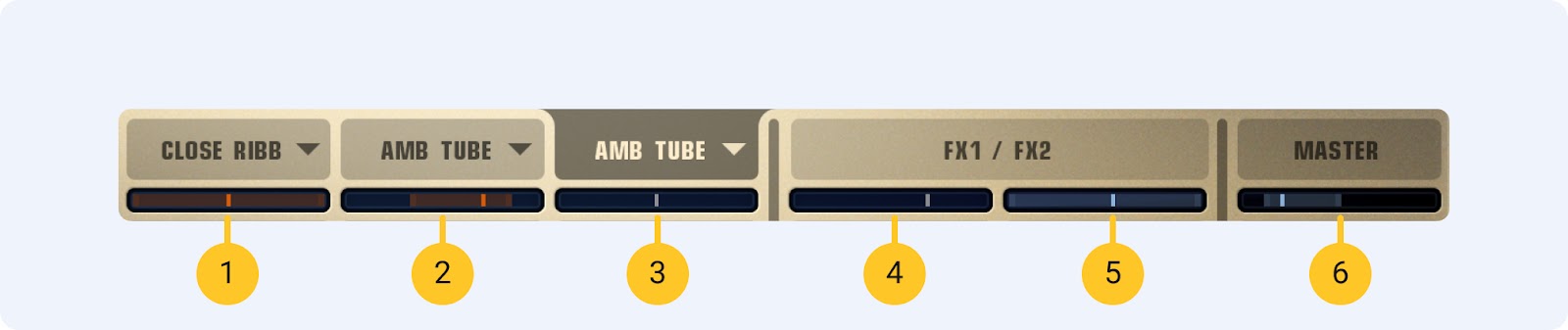

- Three Instrument channels
- Two channels handling the FX1/FX2 returns
- Master channel
The Addictive Keys Mixer Section has six stereo mixer channels. By clicking the channel label you select that channel for editing. All channels in Addictive Keys are summed to the master channel for final processing.

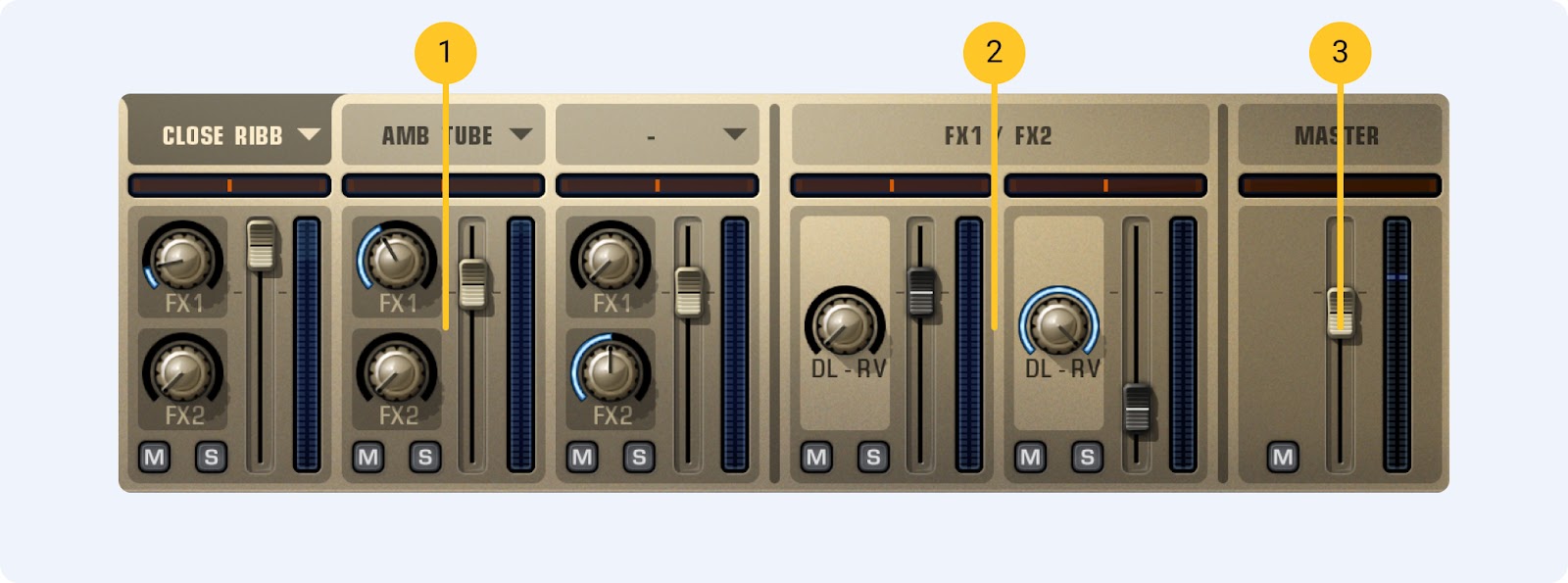

Mixer Section - Channel Settings
Each channel has a Volume Fader, Pan, Solo and Mute buttons. The Instrument Channels also have Send knobs for FX1 / FX2. The FX Channels also have Delerb Balance knobs.
Exception: the Master Channel has no Solo button.
Pan controls
- Full width, centered
- Stereo width reduced, not centered
- Mono, centered
- Mono, not centered
- Reversed stereo image, full width, centered
- Reversed stereo image, reduced width, not centered
The levels of the left and right channels can be adjusted in a variety of ways using the pan control. Drag the Pan Control areas left/right to pan channels. You can also control the stereo width by dragging the mouse up/down, and even reverse the stereo image by dragging upwards; beyond center (the pan handle turns blue to indicate a reversed stereo image).
Note: In Addictive Keys the small pan “handle” is actually a balance control: it changes the relative volume of the left and right channels rather than panning them, whereas the Width control can change the actual panning of the L and R channels.
To quickly center a Pan: To reset a control to its default value, use [Ctrl]+click (Windows) or [option/alt]+click (macOS).
